LD75C35-QLED
Screen Size:
more Than 60 inch, 50-60 inch, 40-49 inch
Use:
Hotel TV, Kitchen TV, Home TV
Television Resolution:
4K, 1080p
TV Control Method:
Voice, Remote, Touch
Display:
LED, QLED
LD75C35-QLED
Description

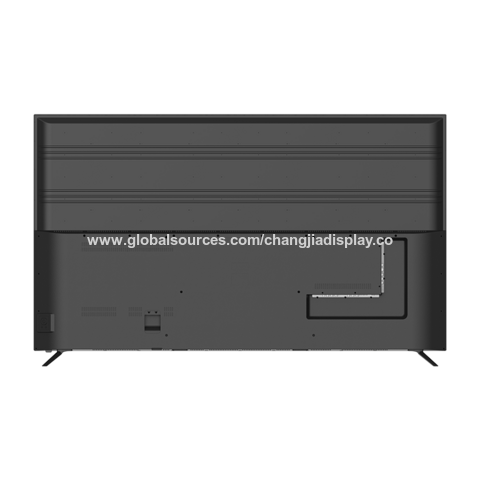

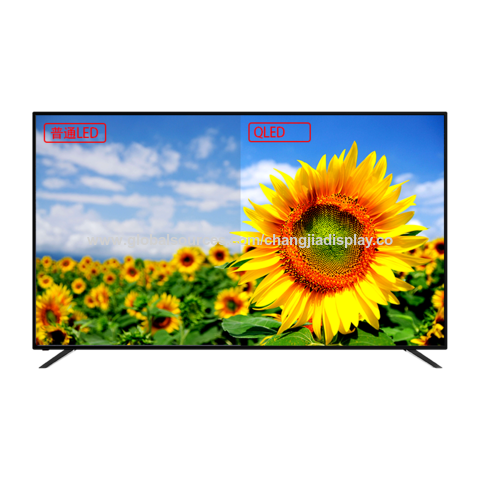

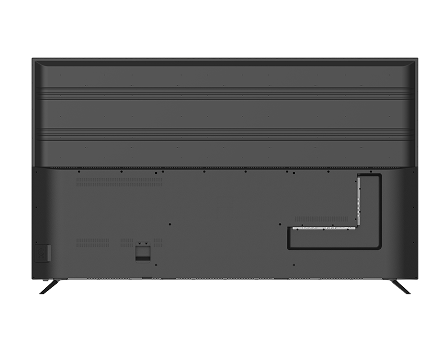

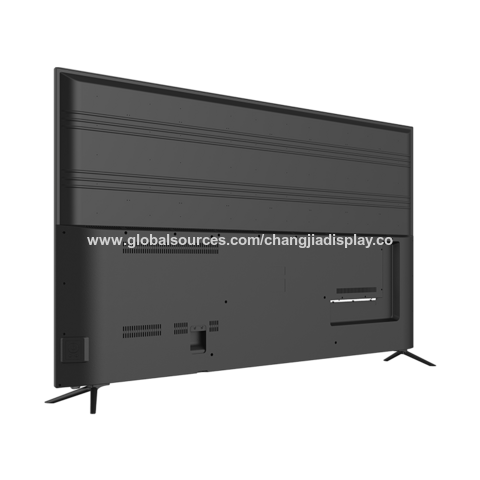

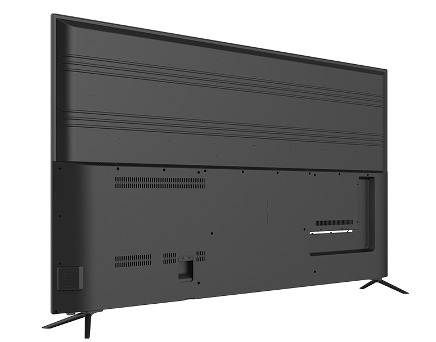

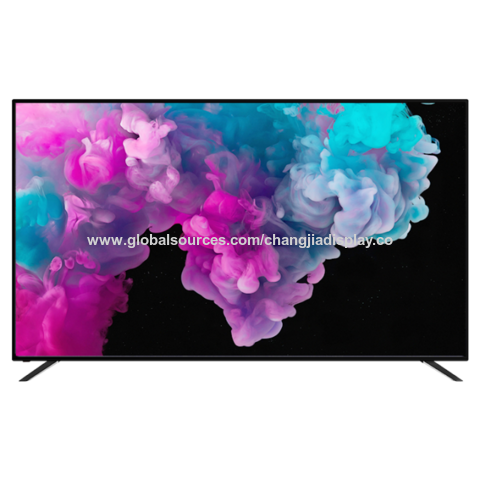

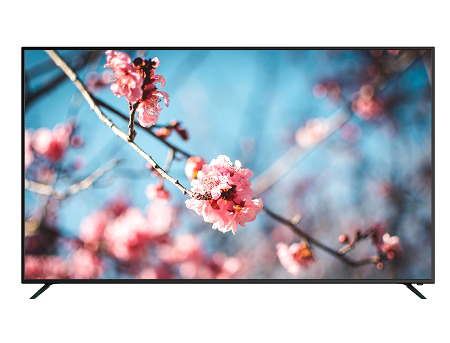

75 inch WebOS Smart UHD TV
Model name: LD75C35-QLED
Size: more Than 60 inch, 50-60 inch, 40-49 inch
TV system: ATV/DTV/Smart TV WebOS TV
Panel : A Grade
Backlight type: LED
Color Support: 16.7M (8bit)
Android System version :WebOS 5.0
CPU:ARM cortex –A55*4
GPU Frequency:700M
CPU Frequency:1.1GHz
APK:Netflix/Youtube/Premire video/Shahid/Didney+/HBO max etc. with License
Power ON Consumption: 300 W
Stand By Power (DPMS) : <0.5w<>
Backlight life: 30,000 hrs
Plug & Play: Supported
Cabinet Color: Black/White
Wall mount: 200x100mm
Sleep time setting: supported
Others: Dolby/HDR supported
Accessory: Remote control ,Battery, User's manual ,others choosed by Clients
| Panel Type: A grade Size：more Than 60 inch, 50-60 inch, 40-49 inch ♦ Display Ratio: 16:9 ♦ Resolution: 3840*2160 UHD ♦ Brightness: 250~400 cd/㎡ ♦ View angle: 178° / 178° ♦ Repsonse time: 8 ms ♦ Input Voltage:100-240V AC 50/60HZ ♦ Multi-Language OSD ♦ Backlight Adjustment ♦ Support most video formats ♦ Environmental Protection ♦ H.264/H.265 ♦ Energy Saving ♦ HDMI 1.4a/2.0a ♦ USB 2.0 ♦eMMC Flash:8G ♦DDR SIZE：1.5G ♦ hotel model: Optional ♦ Output/Input: HDMI*3+RF*1+Earphone*1+USB*2+AV in*1+Optical*1+RJ45*1 |
|
|
| Analog TV system: PAL, SECAM, NTSC, PAL-M/N Digital TV system: ISDB-T, DVB-T/T2/S2, ATSC USB slot: support audio/image/video VGA resolution: 3840*2160 Refresh frequency is 50/60Hz Remote control: Infrared remote control / Bluetooth voice remote control | Plug & Play: Supported Cabinet Color: Black/White Speaker: 8Ω10W*2 Wall Mount: 4 holes Certication: CE, ROHS, FCC, KC, energy star，CB,IECEE,others depends clients needs. |
|
|
Specifications
| Certificate Standard | CB | ||||
|---|---|---|---|---|---|
| Certificate Image |
|
||||
| Certificate Number | CN3-00196 | ||||
| Issue Date | |||||
| Issued By | The Hong Kong Certification LimitedHKCC | ||||
| Expiry Date | 2025/01/18 | ||||
| Certificate Standard | CB | ||||
|---|---|---|---|---|---|
| Certificate Image |
|
||||
| Certificate Number | NL-78874 4384760.50 | ||||
| Issue Date | |||||
| Issued By | DEKRA Certification | ||||
| Expiry Date | 2025/01/26 | ||||
| Certificate Standard | ROHS | ||||
|---|---|---|---|---|---|
| Certificate Image |
|
||||
| Certificate Number | CTB220708023CX | ||||
| Issue Date | |||||
| Issued By | Shenzhen CTB Testing Technology Co., Ltd | ||||
| Expiry Date | 2025/07/22 | ||||
| Certificate Standard | CE | ||||
|---|---|---|---|---|---|
| Certificate Image |
|
||||
| Certificate Number | CTB220516017E | ||||
| Issue Date | |||||
| Issued By | Shenzhen CTB Testing Technology Co., Ltd | ||||
| Expiry Date | 2024/12/31 | ||||
